MODEL INFORMATION

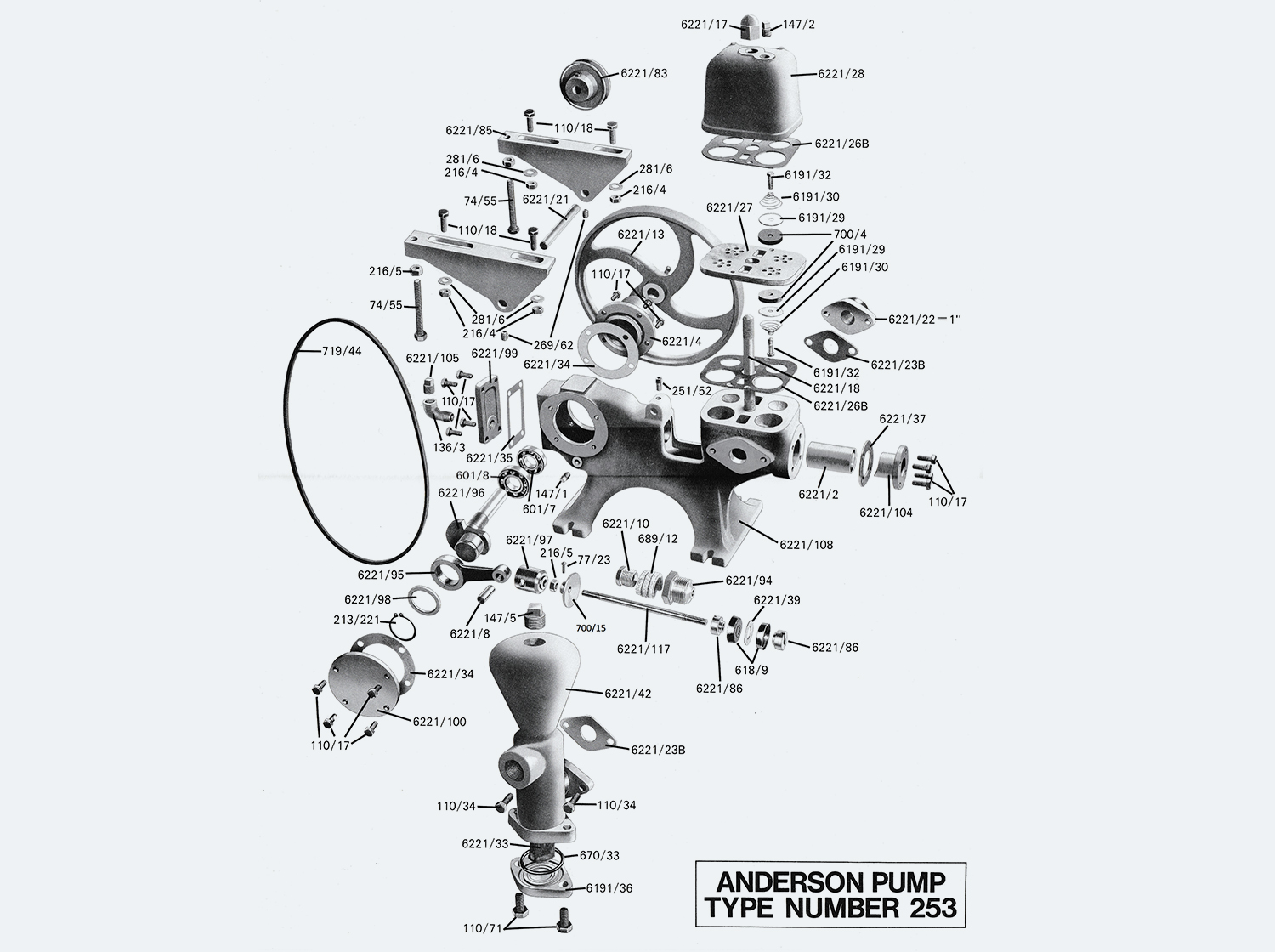

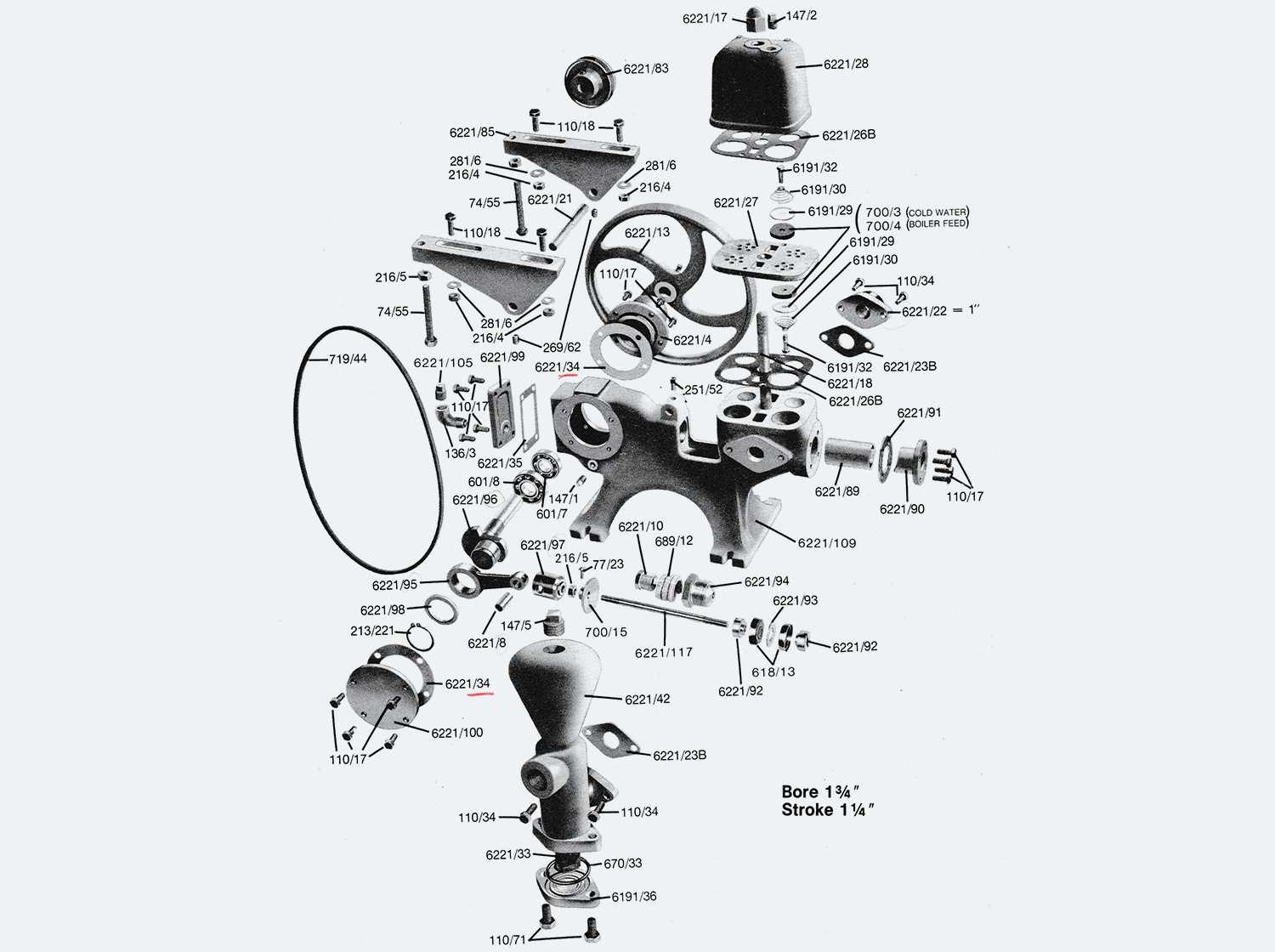

ANDERSON 253
Designed to work with a boiler with the ability to handle high pressures. It can handle cold water (leather cups and softer valve rubbers) or boiler feed (tulip cups and hard valve rubbers).
·       Flow rate - 1136 litres per hour (250 gallons)
·       Maximum head (delivery side) - 130 psi (300ft or 91 m vertical lift.)
·       Maximum lift (suction side) 7.5m (25ft).
·       Plunger cup size - 1 3/8" (35mm)
·       Designed for a 1425 rpm electrical motor and uses SAE 30 oil.

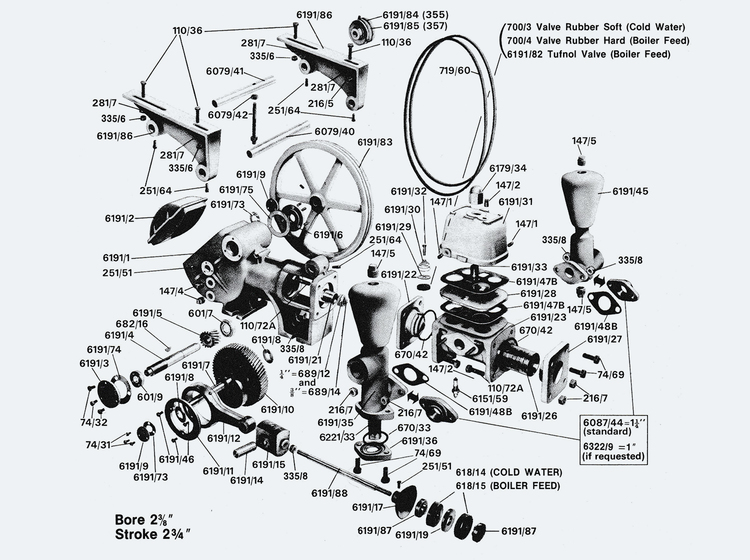

ANDERSON 355 AND 357
Designed for a range of applications, The Anderson "350" pumps are some of our most popular pumps.
There are two version, the 355 and the 357 pump.

The 355 is designed for higher volume/ lower pressure use.
·       Uses a larger (4 1/2") Motor Pulley, designed for cold water so Leather cups and softer Valve rubber work well.
·       Flow rate - 2273 litres per hour (500 gallons)
·       Maximum head (delivery side) - 216 psi (500 ft or 150m vertical lift).

The 357 is designed for higher pressures, lower volume
·       Uses a smaller (3") Motor Pulley, need Tulip cups and harder Valve Rubber to handle 100+ psi pressures.
·       Flow rate - 1590 litres per hour (350 gallons)
·       Maximum head - 303 psi (700ft or 213m vertical lift)

·       Designed for a 1425 rpm electrical motor and uses SAE 90 oil.
·       Maximum lift (suction side)- 7.5m (25ft)..
·       Plunger cup size - 2 3/8" (60mm)

ANDERSON  605 AND 607
These workhorses of the Anderson range are designed for heavy use. There are two models, the 605, for higher volume, slightly lower pressure and the 607, for higher pressures and lower volume.

The 605 uses Leather cups and softer Valve Rubbers.
·       Flow rate - 3636 litres per hour (800 gallons)
·       Maximum head (Delivery side) - 238 psi (550ft or 167m vertical lift)

The 607 uses Tulip cups and a harder Valve Rubber to handle 100+ psi.
·       Flow rate - 2955 litres per hour (650 gallons)
·       Maximum head - 303 psi (700ft or 213m vertical lift).

·       Designed for a 1425 rpm electrical motor and uses SAE 90 oil.
·       Maximum lift (suction side) - 7.5m (25ft).
·       Plunger cup size - 2 3/4" (67mm)

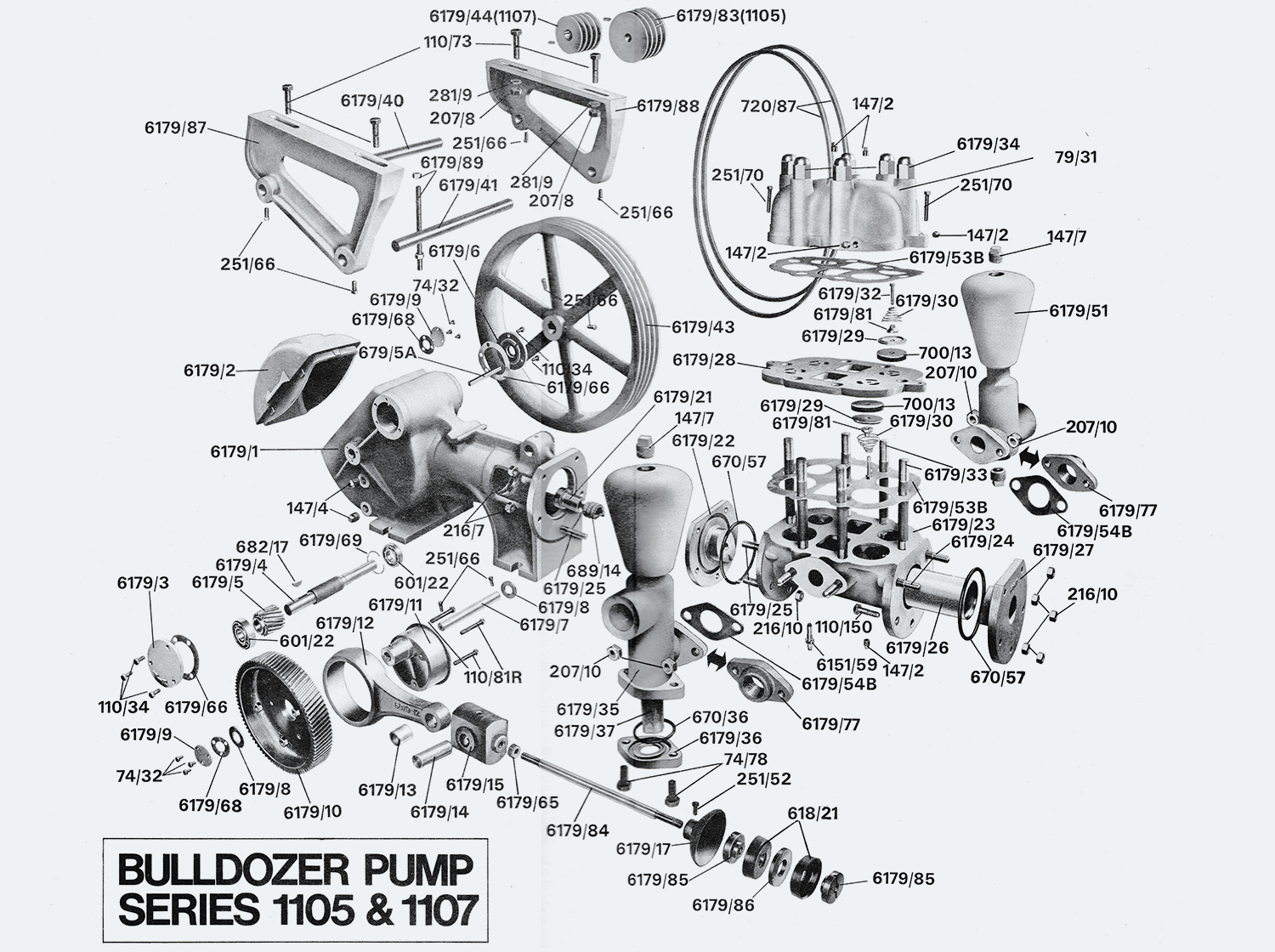

ANDERSON 1105
When you need to move a lot of water around the place, here is your pump. With two versions and built to last, this may be your next heavy-duty pump.

The 1105 uses Leather cups and hard Valve Rubber,
·       Flow rate - 6364 litres per hour (1400 gallons)
·       Maximum head - 238 psi (550ft or 167m vertical lift)

The 1107 uses Tulip cups and has Teflon valves.
·       Flow rate - 4773 litres per hour (1050 gallons)
·       Maximum head - 303 psi (700ft or 213m vertical lift).

·       Designed for a 1425 rpm electrical motor and uses SAE 90 oil.
·       Maximum lift (suction side) - 7.5m (25ft).
·       Plunger cup size - 3 1/2" (89mm)

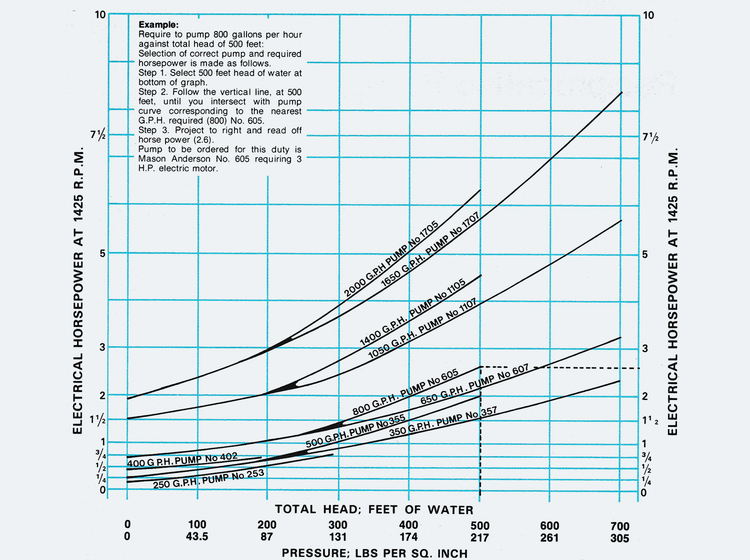

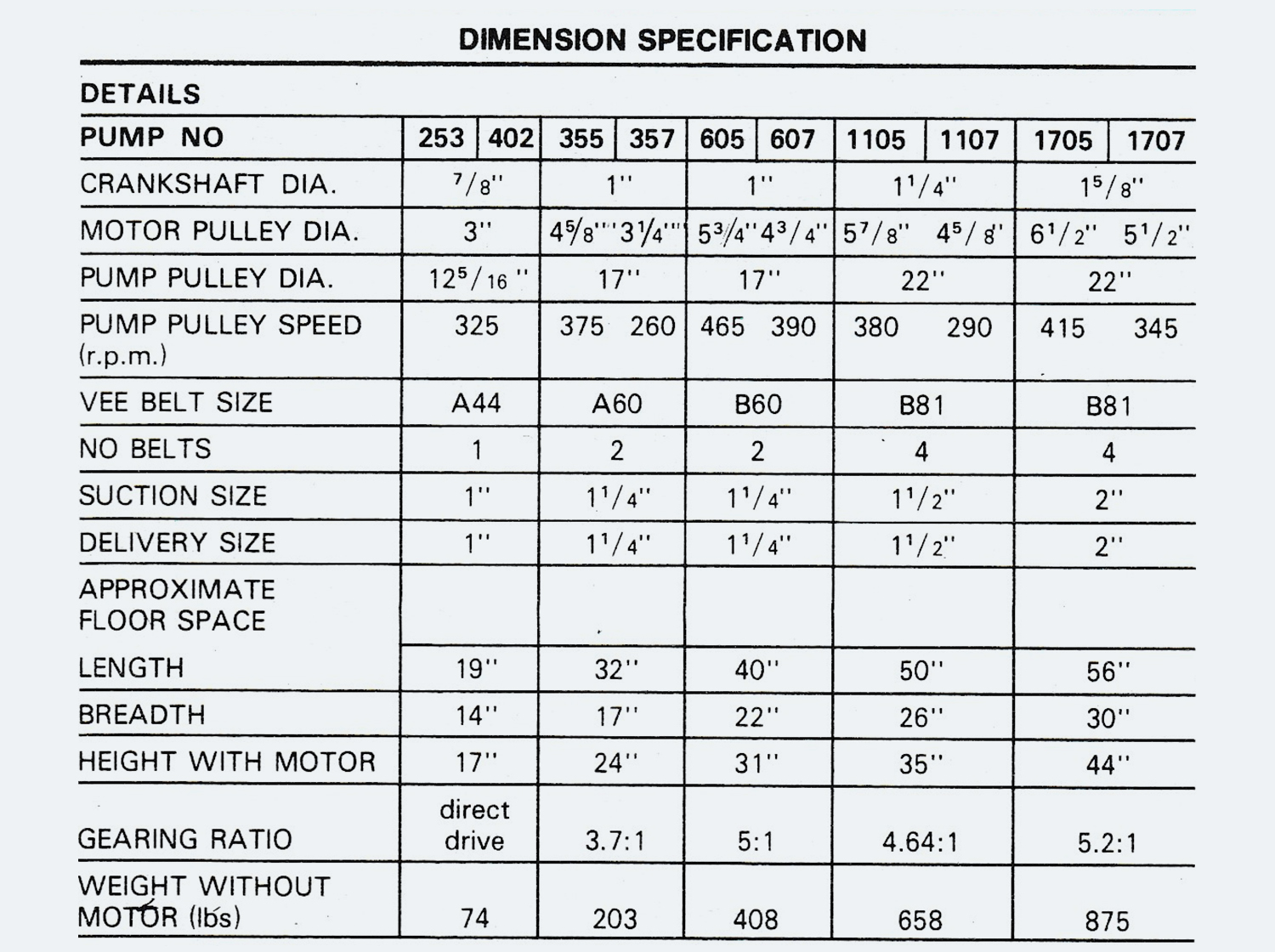

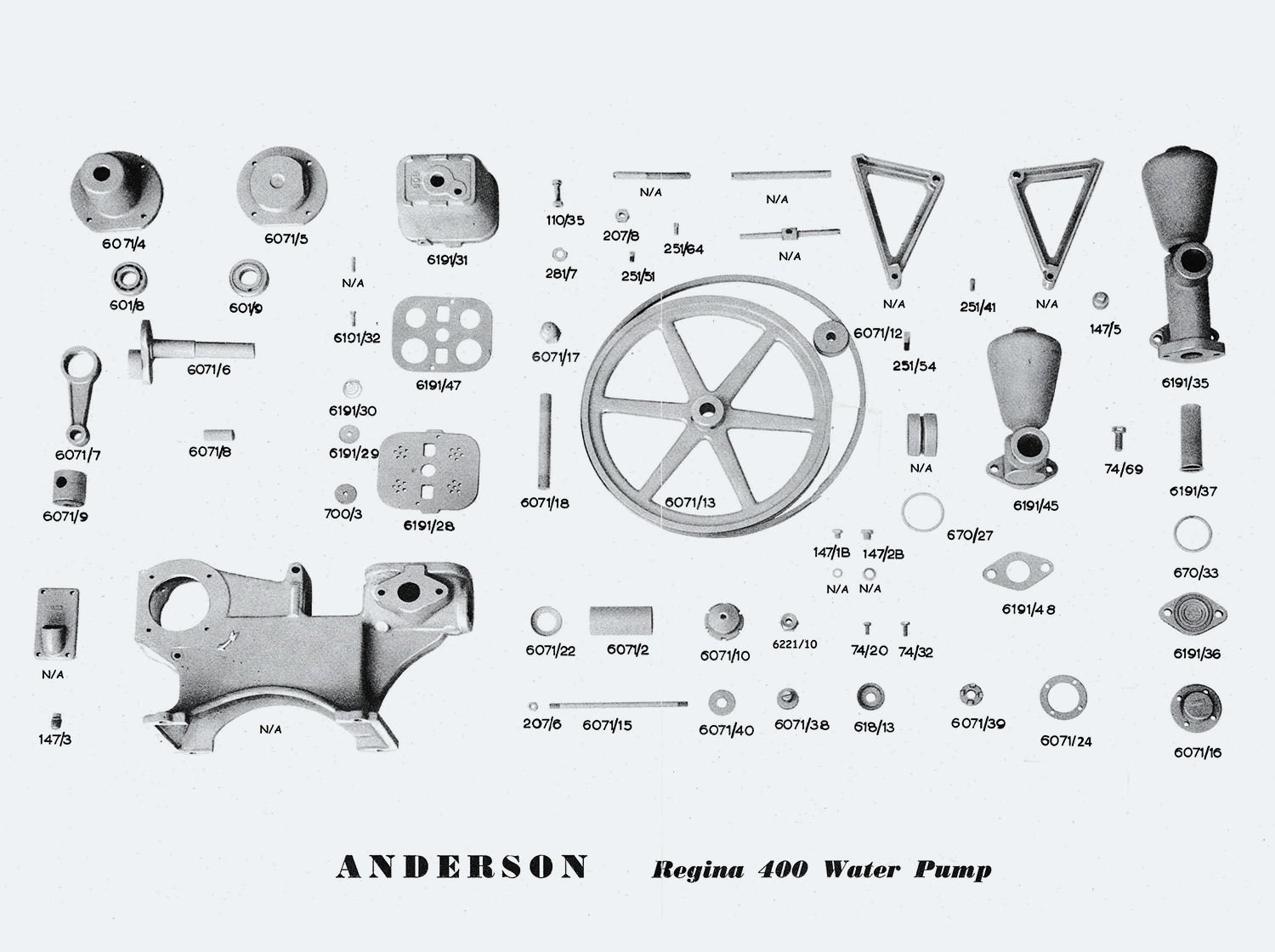

Anderson 253 Anderson 253 Special K Anderson 355 Anderson 402 Anderson 605 Anderson 1105 Anderson 1705 Anderson deepwell gearing Anderson Regina 400 Anderson Performance Graph Anderson Deepwell Gearing Performance Chart Anderson Dimensions and Spec
