Please Note - We can only supply spare parts for these pumps. New Pumps are not available. If a part is marked with N/A on the Parts Diagram, then we are unable to supply this part.

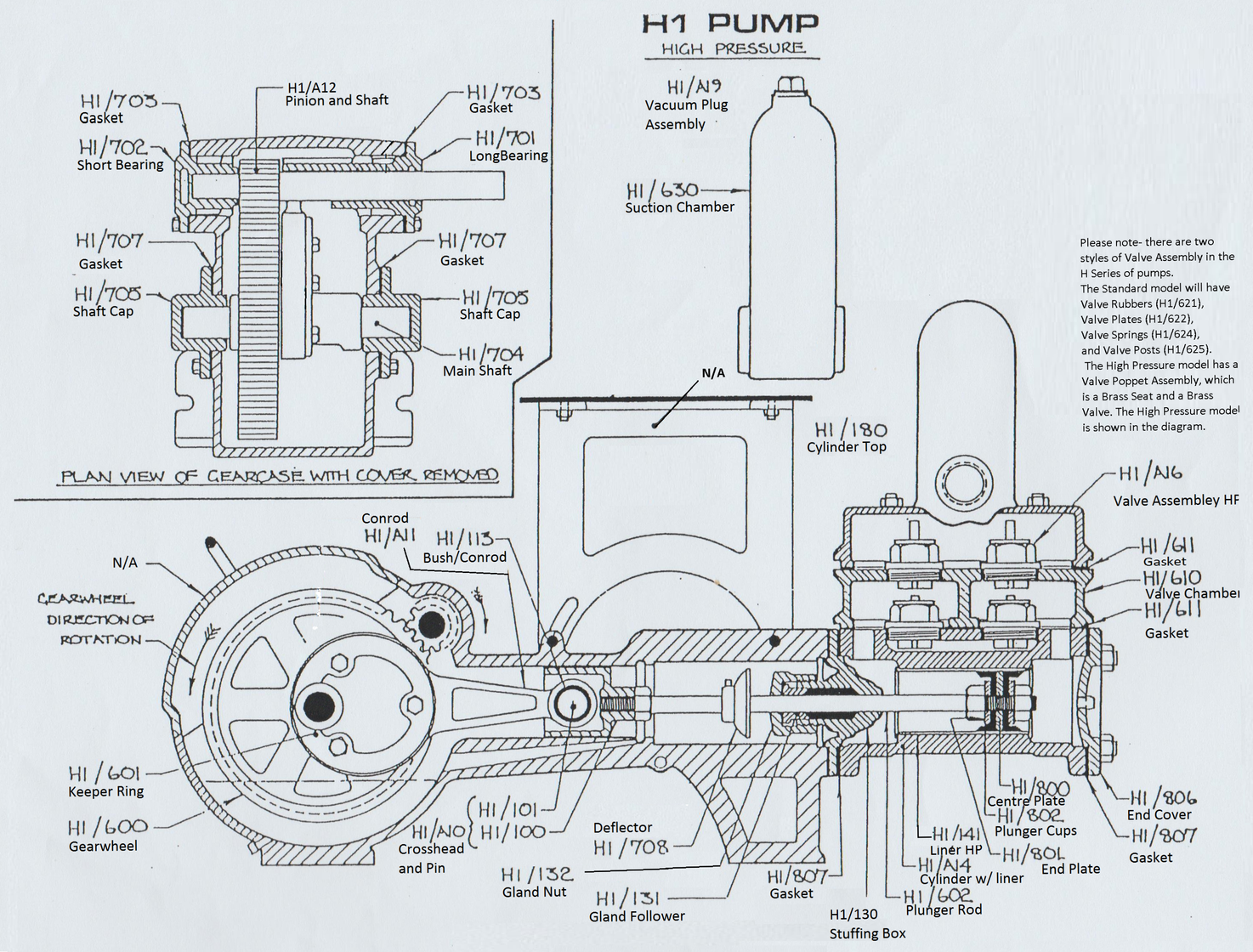

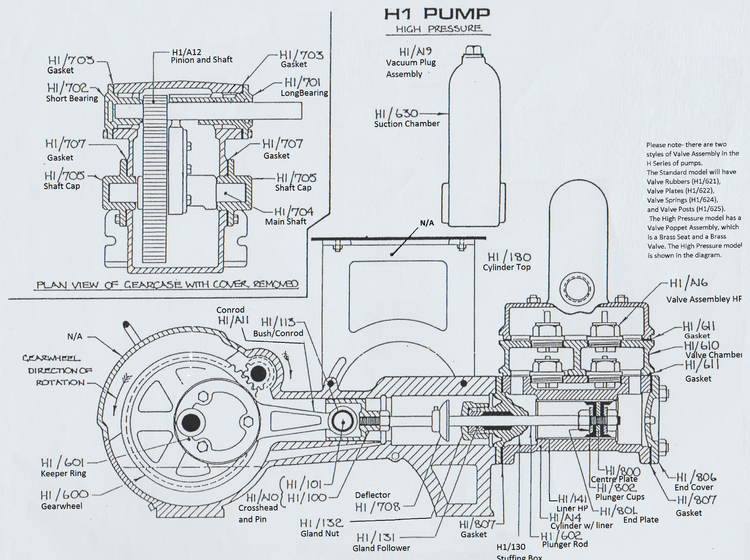

The most popular of the H series. There are two different sizes in this range, the Standard (STD) and the High Pressure (HP).
The Standard (2 3/4" bore)
has a flow rate of 2273 litres per hour (500 gallons)
maximum pressure of 130 psi (91m or 300ft of vertical head)
The High Pressure(2 1/4" bore)
has a flow rate of 1365 litres per hour (300 gallons)
maximum pressure of 260 psi (180m or 600ft of vertical head)

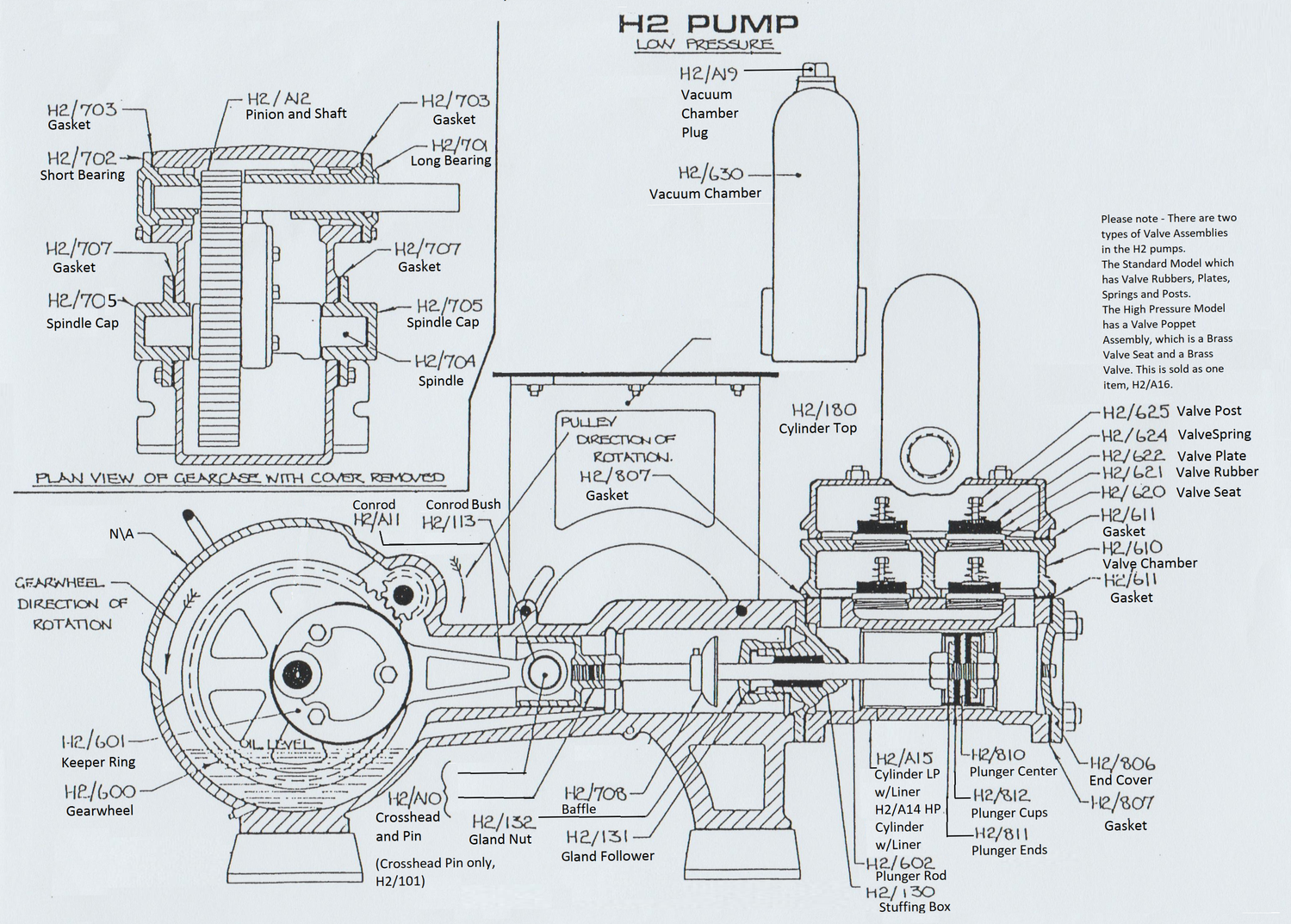

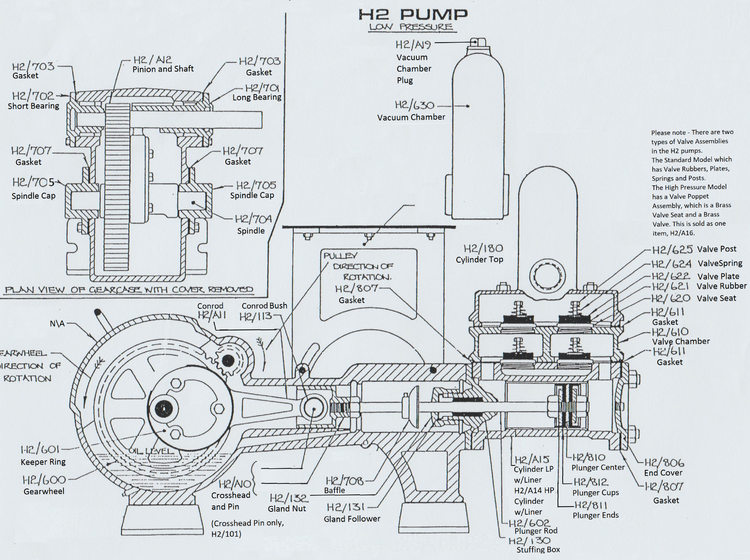

Reliable with a higher flow rate than the H1. There are two different sizes in this range, the Standard (STD) and the High Pressure (HP).
The Standard (3 1/2" bore)
has a flow rate of 4225 litres per hour (930 gallons)
maximum pressure of 130 psi (91m or 300ft of vertical head).
The High Pressure (3" bore)
has a flow rate of 2680 litres per hour (590 gallons)
maximum pressure of 215 psi (152m or 500ft of vertical head)

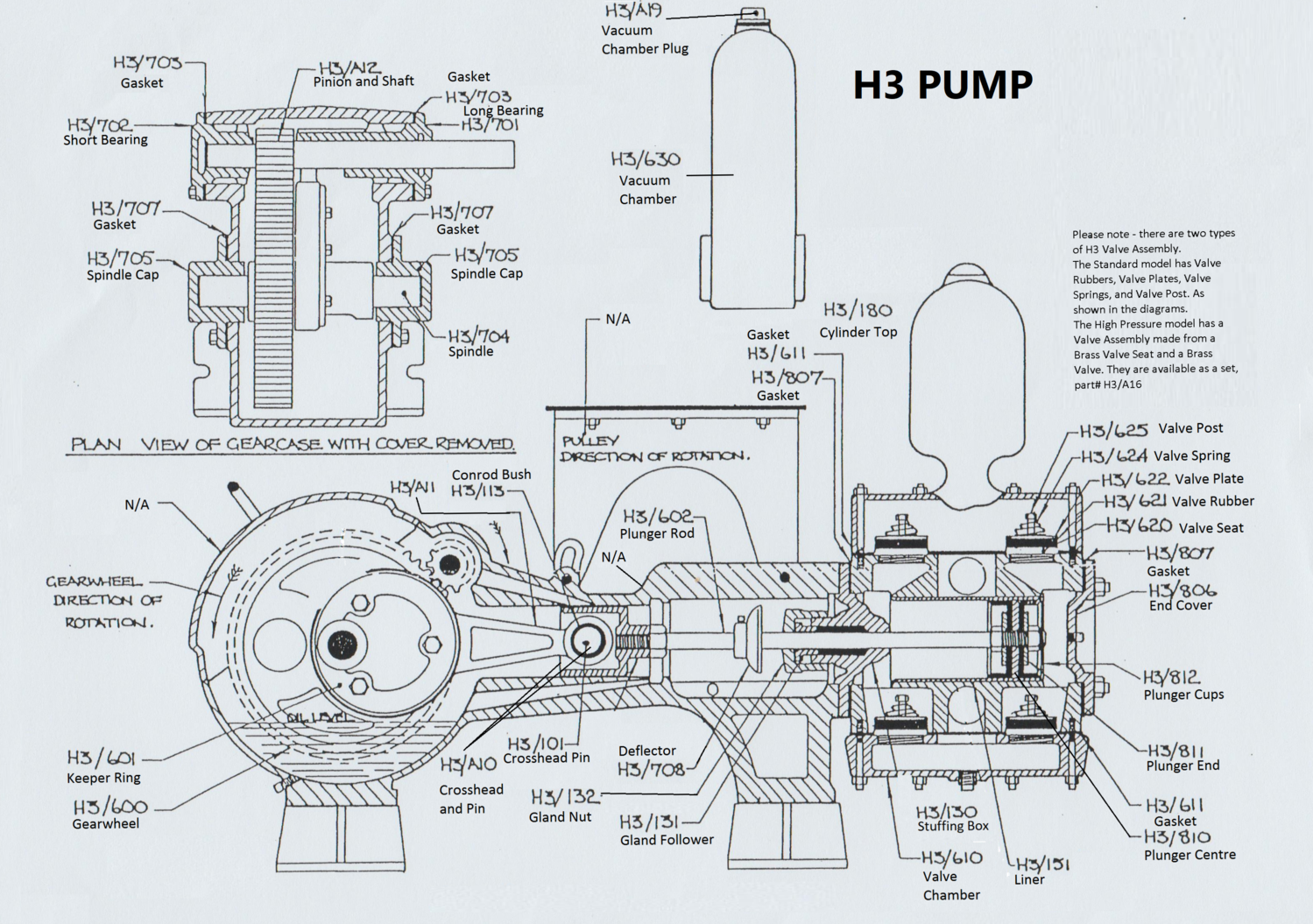

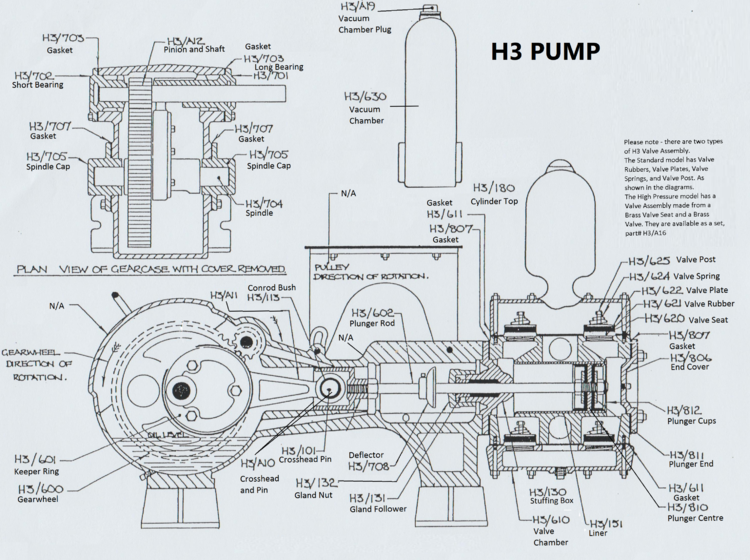

These pumps offer the largest flow rate of the H series that we support. There are two different sizes in this range, the Standard (STD) and the High Pressure (HP).
The Standard (4 1/2" bore)
has a flow rate of 9090 litres per hour (2000 gallons)
maximum pressure of 130 psi (91m or 300ft of vertical head).
The High Pressure (4" bore)
has a flow rate of 5225 litres per hour (1150 gallons)
maximum pressure of 215 psi (152m or 500ft of vertical head).

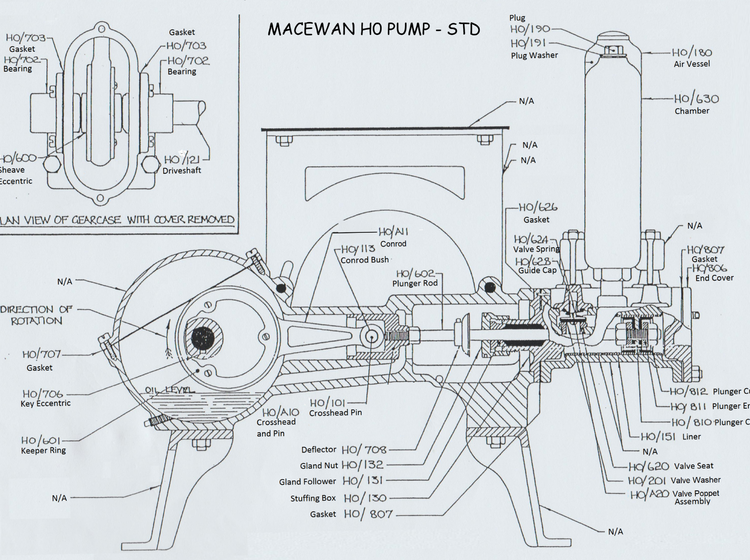

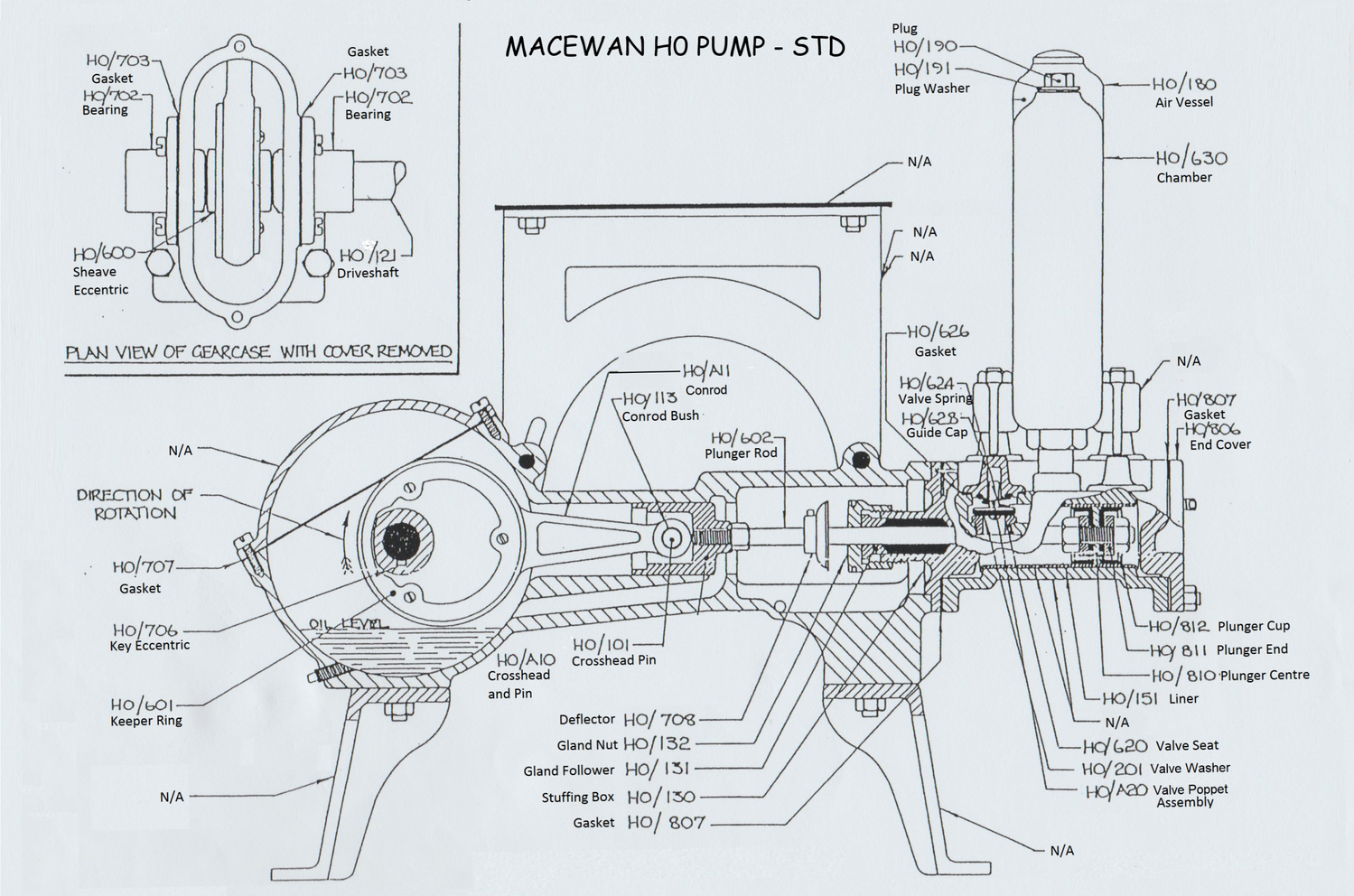

Please Note - we have parts for the H0 pump too. We have included the Parts Diagram for this too. There is also a H4 but we are unable to supply any parts for it. We don't have any Part Diagrams of it either.
If you have any questions, please contact us.
