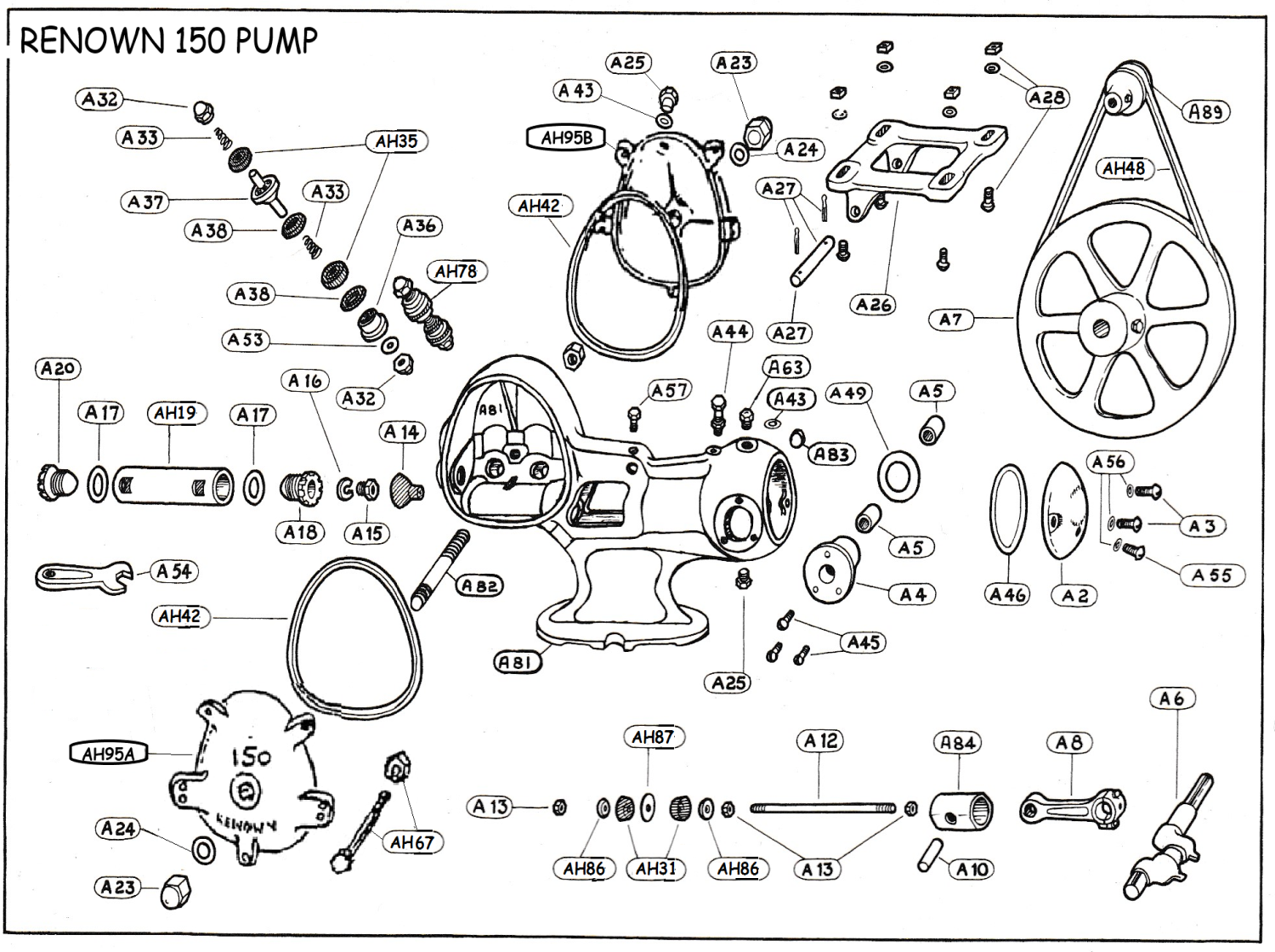

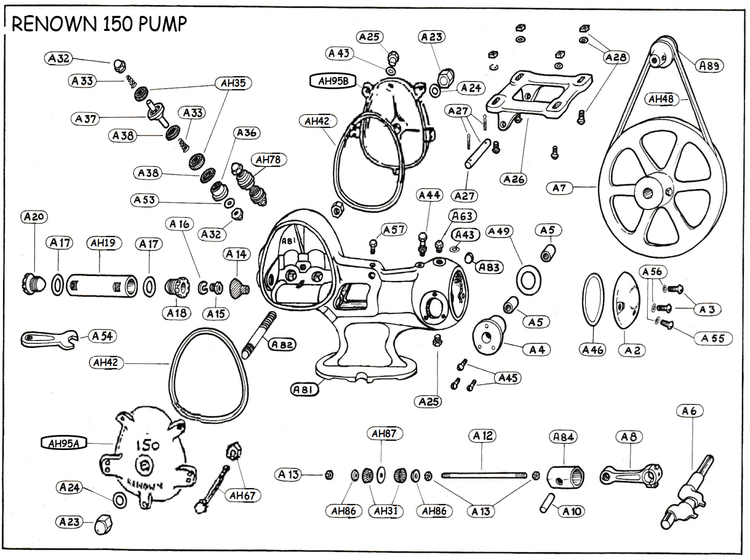

RENOWN 150
The Renown 150 is a dependable, high-pressure pump designed for use in fire protection systems and other high-pressure applications. Known for its reliability and robust performance, this pump is ideal for demanding environments.
· Flow Rate: 680 litres per hour (150 gallons)
· Maximum Head: 250 psi (575 feet or 175 metres vertical lift)
· Motor Requirement: 3/4 hp (electric 1,425 rpm, capacitor start)
· Oil Type: SAE 30 oil
· Maximum Lift (Suction Side): 7.5m (25ft)
· Bore size: 1"
Key Design Features:
The Renown 150 has undergone a design update, transitioning from a pear-shaped body to a squarer shape with a flat top cover.
Shares the same body as the Renown 200, but with 5 side bolts and one central bolt holding the side covers (Renown 200 has only a central bolt).

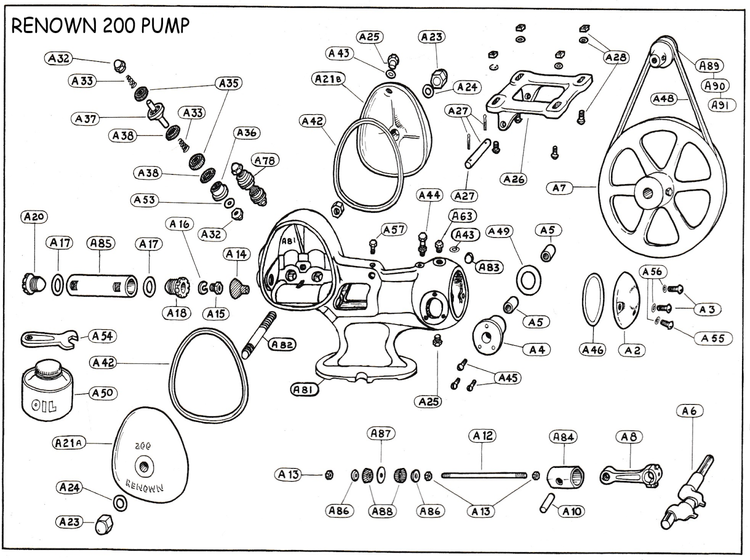

RENOWN 200
The Renown 200 is one of the most reliable pumps in our range, with some models still in operation after 50+ years of service. It's particularly well-suited for home or garden applications.
· Flow Rate: 1,159 litres per hour (255 gallons)
· Maximum Head: 65 psi (150 feet or 45 metres vertical lift)

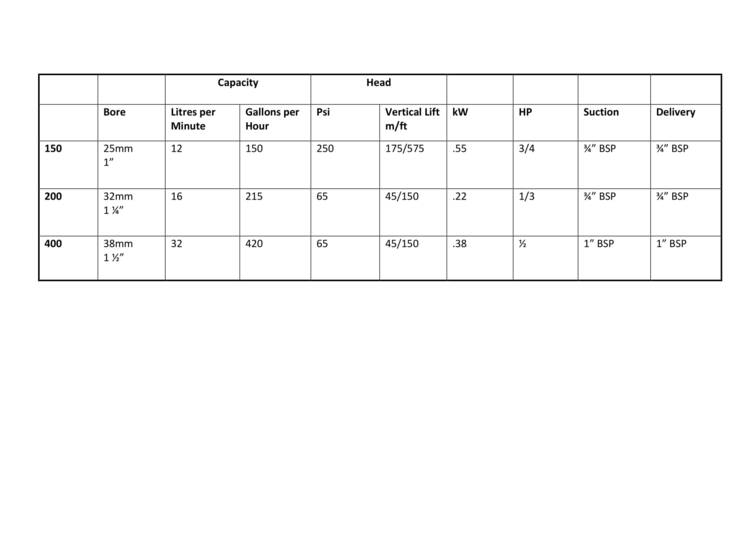

· Motor Requirement: Electric 1,425 rpm, capacitor start (refer to side chart for additional details)
· Oil Type: SAE 30 oil
· Maximum Lift (Suction Side): 7.5m (25ft)
· Bore size: 1 1/4"
Key Design Features:
Similar in body design to the Renown 150, but with only one central bolt securing the side covers (Renown 150 has 5 side bolts and one central bolt).
The body shape has transitioned from a pear shape to a squarer design with a flat top cover.

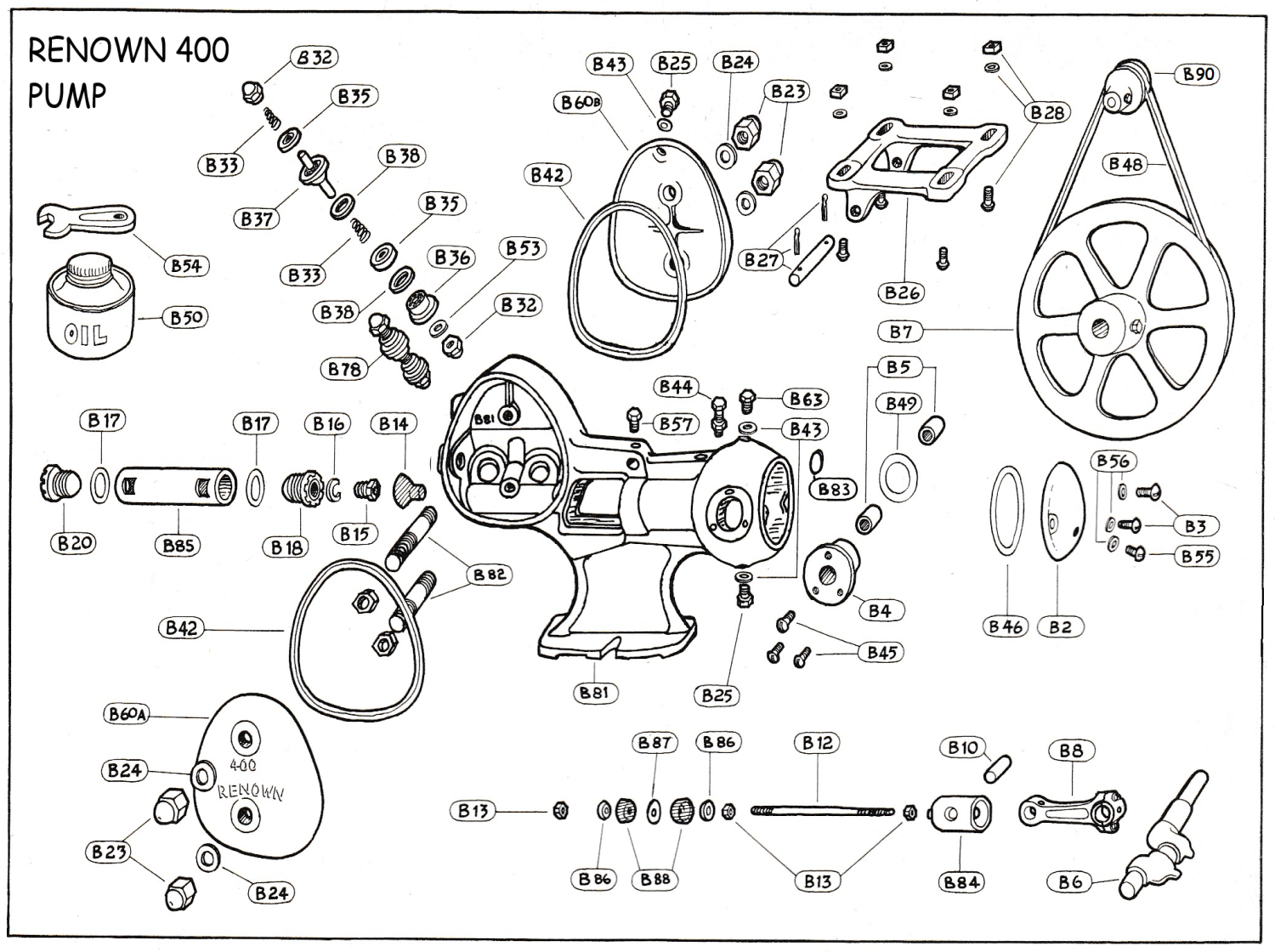

RENOWN 400
The Renown 400 is a highly reliable pump designed for mid-volume, low-pressure applications. It's ideal for those requiring a tailored pressure solution.
· Flow Rate: 1,750 litres per hour (385 gallons)
· Motor Compatibility: Can be powered by either a 1/3 hp or a 1/2 hp an electric motor (1,450 rpm, capacitor start)
· With 1/3 hp motor: 28 psi (64 feet or 19 metres vertical lift)
· With 1/2 hp motor: 65 psi (150 feet or 45 metres vertical lift)
· Oil Type: SAE 30 oil
· Maximum Lift (Suction Side): 7.5m (25ft)
Key Design Features:
Can be powered by either a 1/3 hp or 1/2 hp motor (1450 rpm, capacitor start) to suit varying pressure needs.
Designed for mid-volume, low-pressure applications where versatility and efficiency are required.
