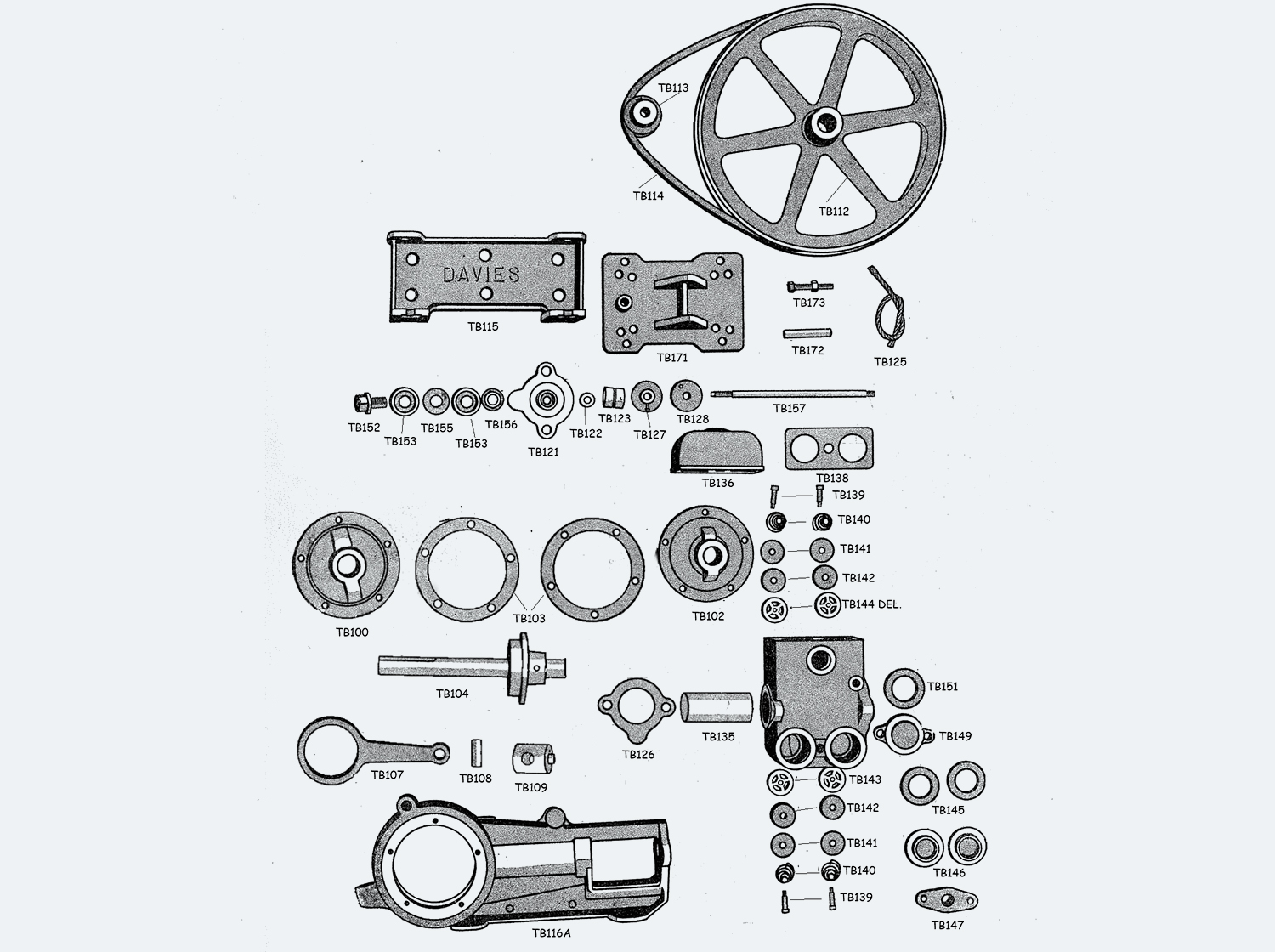

B1 PUMP
The B1 Pump is one of New Zealand’s most popular and trusted pumps, renowned for its reliability and ease of servicing. It is available in three different variants: Standard (STD), Low Pressure (LP), and High Pressure (HP), offering versatile options for a range of applications.

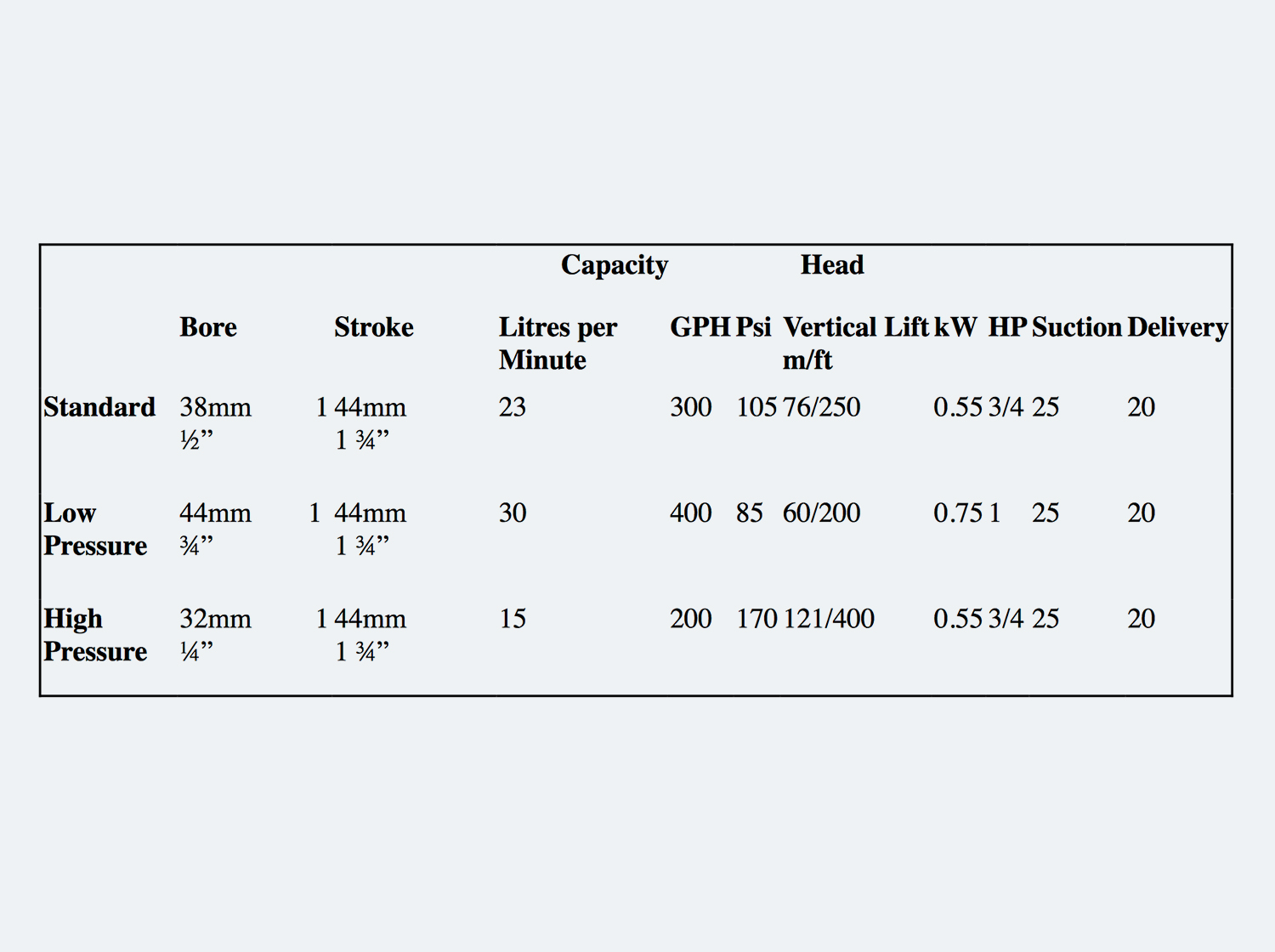

The Standard (38mm / 1 1/2" Bore)
· Flow Rate: 1,364 litres per hour (300 gallons)
· Maximum Pressure: 108 psi (250ft or 76m vertical lift)
The Low Pressure (44mm / 1 3/4" Bore)
· Flow Rate: 1,818 litres per hour (400 gallons)
· Maximum Pressure: 85 psi (200ft or 60m vertical lift)
The High Pressure (32mm / 1 1/4" Bore)
· Flow Rate: 910 litres per hour (200 gallons)
· Maximum Pressure: 173 psi (400ft or 121m vertical lift)
· Maximum Lift (Suction Side): 7.5m (25ft)
· Motor Requirement: Designed for a 1,425 rpm electrical motor
· Oil Type: SAE 30 oil

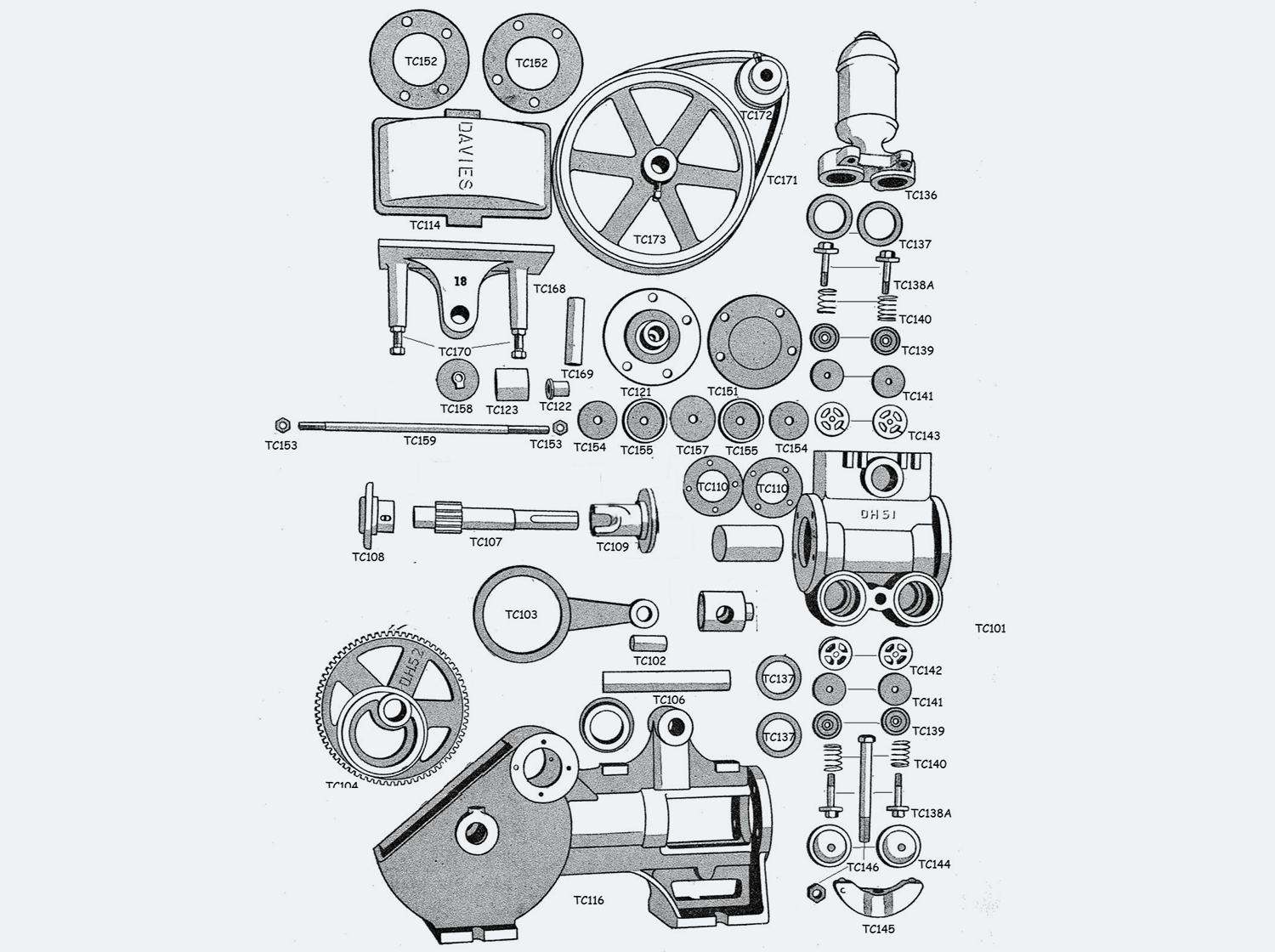

C1 PUMP
The C1 Piston Pump is a highly popular, heavy-duty solution widely used across New Zealand for water pumping and pressure systems. Available in two versions—Standard (STD) and High Pressure (HP)—the C1 pump is designed for reliability and durability.

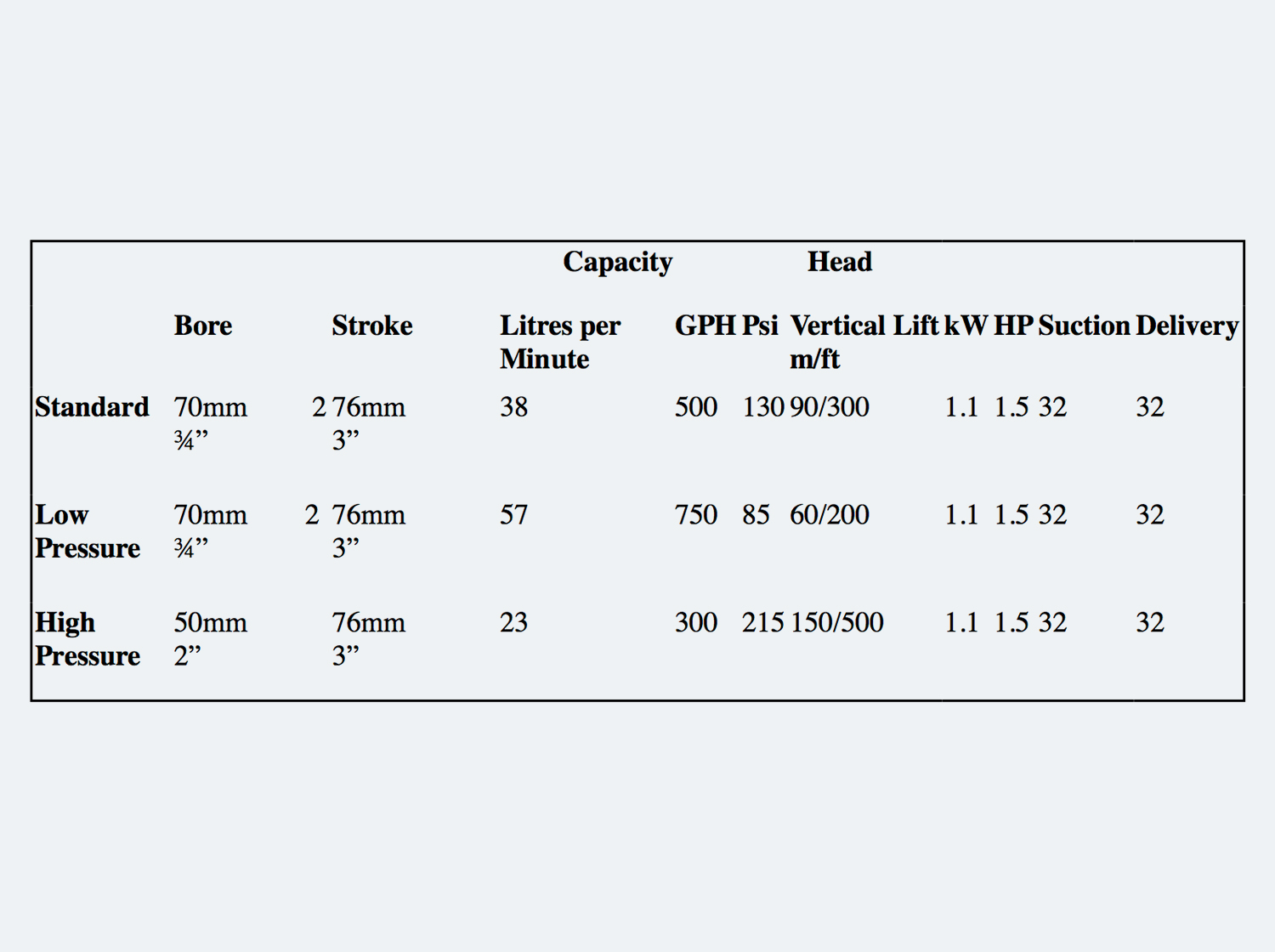

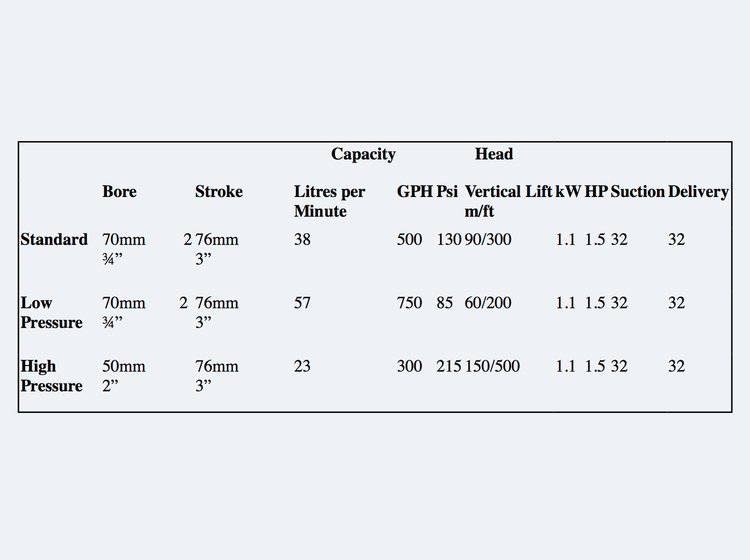

The Standard (2 3/4" Bore)
· Flow Rate: 2,273 litres per hour (500 gallons)
· Maximum Pressure: 130 psi (300ft or 91m vertical lift)
The High Pressure (2" Bore)
· Flow Rate: 1,363 litres per hour (300 gallons)
· Maximum Pressure: 216 psi (500ft or 152m vertical lift)
Optional Low Pressure Model:
This is a Standard C1 pump equipped with a larger pump pulley (14" instead of 12"). Please contact us for more details.
· Maximum Lift (Suction Side): 7.5m (25ft)
· Motor Requirement: Designed for a 1,425 rpm electrical motor
· Oil Type: SAE 30 oil

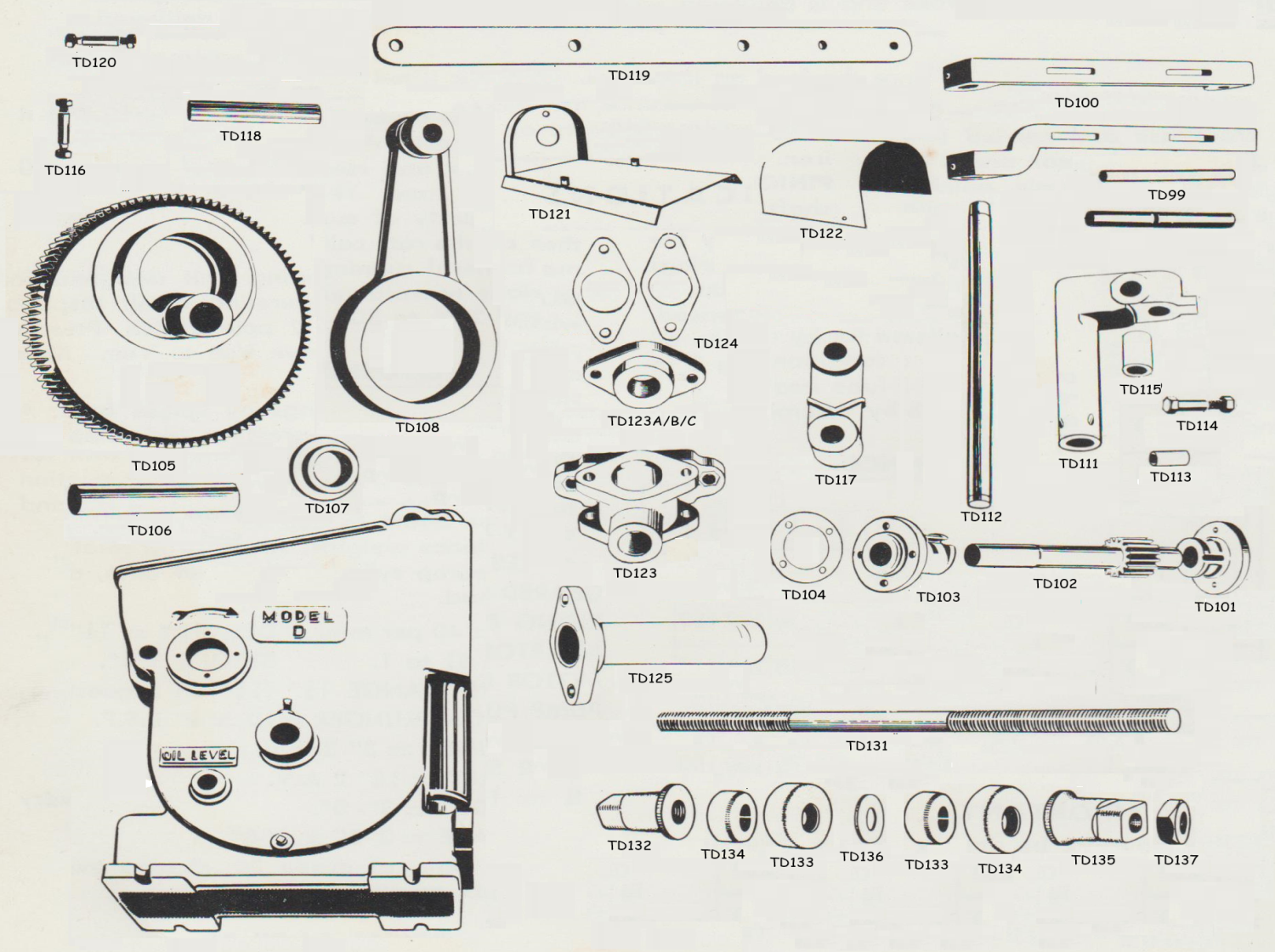

Deep Well Gearing Range

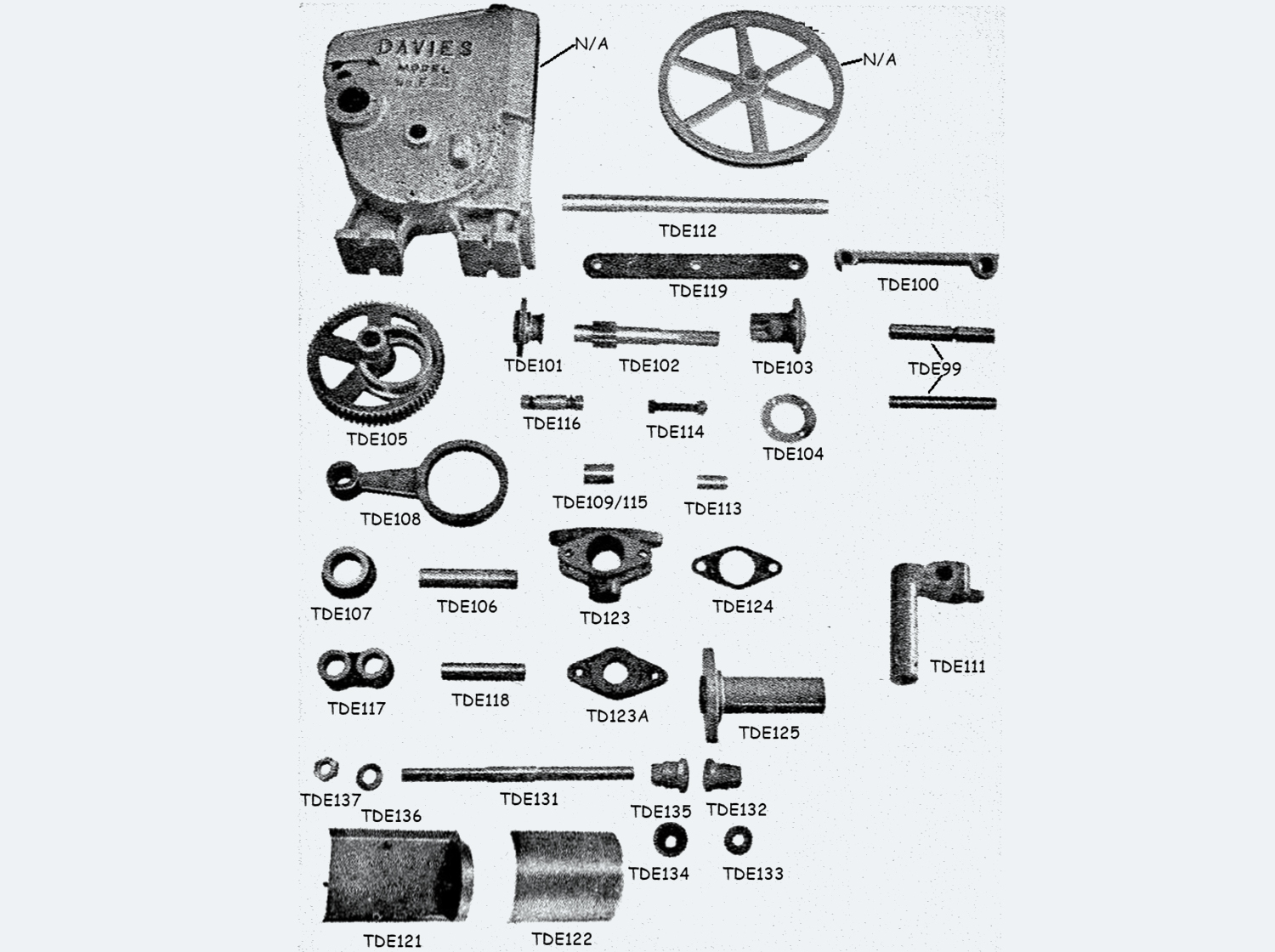

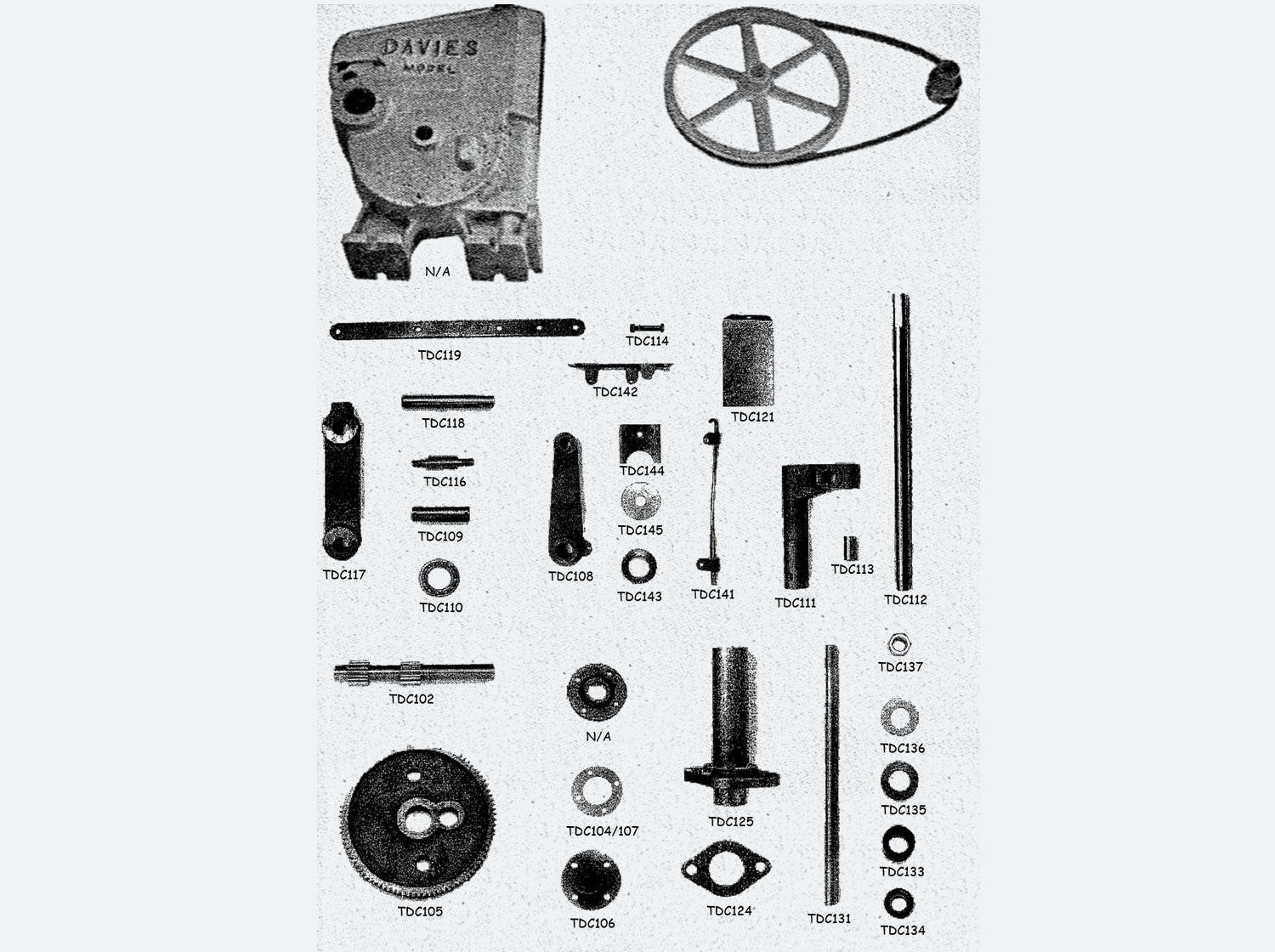

We have also included exploded views for the DeepWell Gearing range, which includes the Model D, Model DE, and the older Model DC. More detailed information about these pumps will be available soon.
