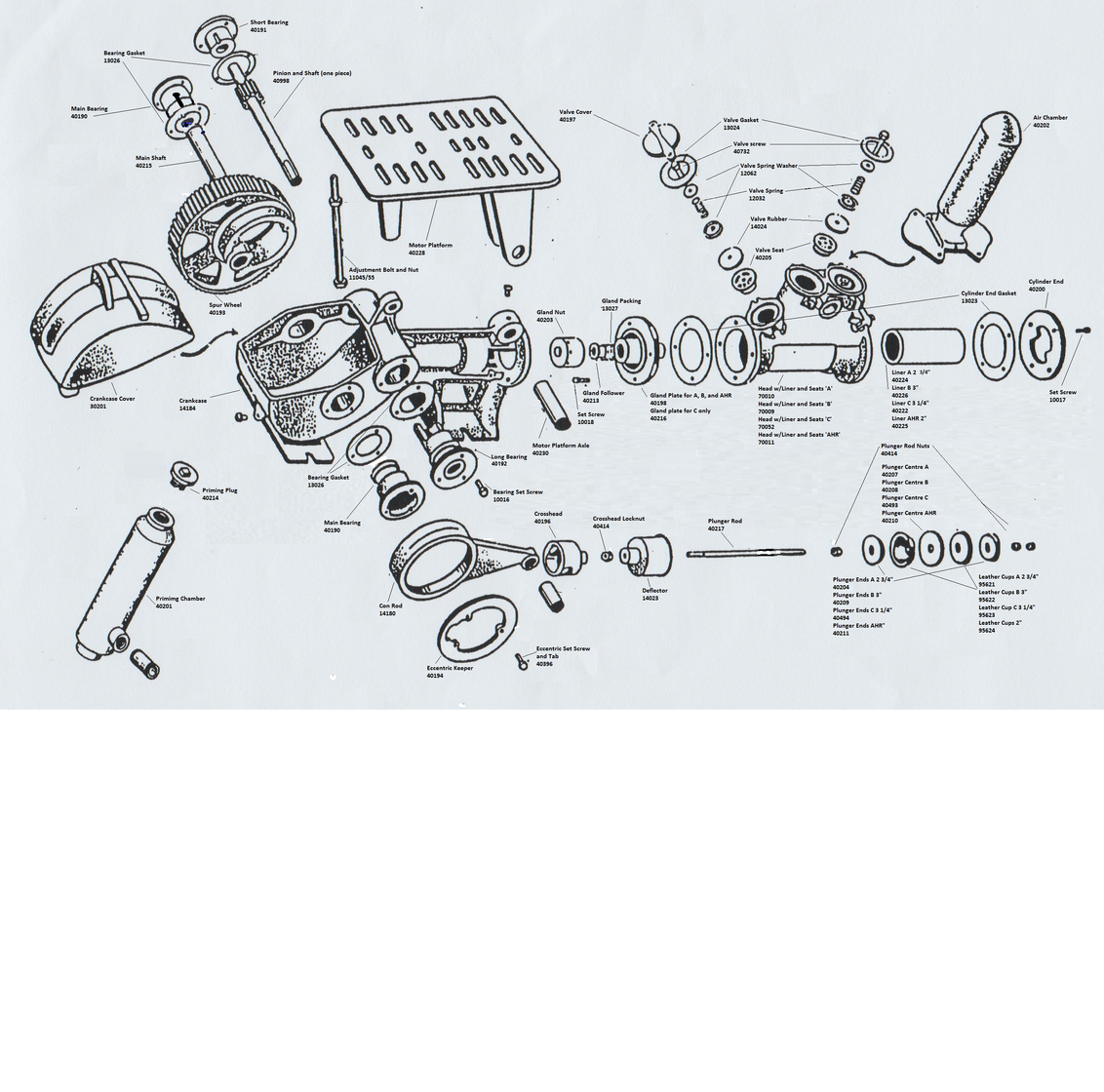

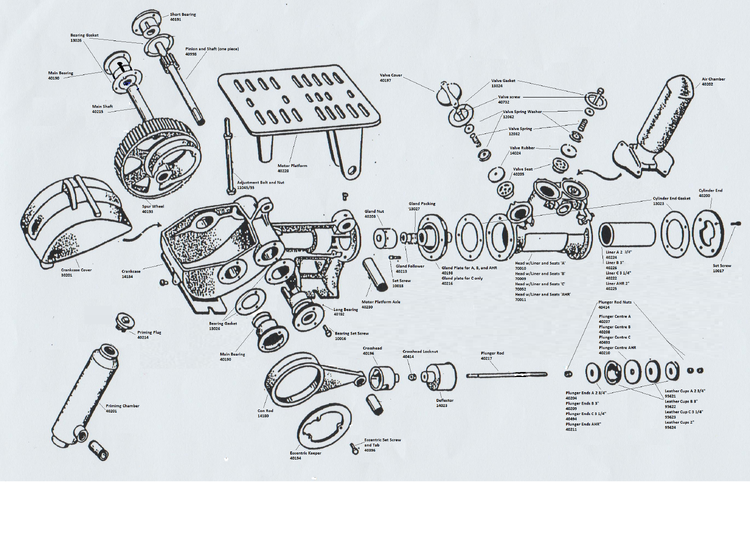

All PowerFlo pumps feature a standardised back (mechanical) end, simplifying part ordering and replacements. Both the pinion assembly and main shaft are supported by individually replaceable bearings, which streamlines maintenance and reduces overall costs. Each pump model has a specific head (water end). If you’re unsure of the model, simply measure the bore, which refers to the brass liner that the pump cups move back and forth in.

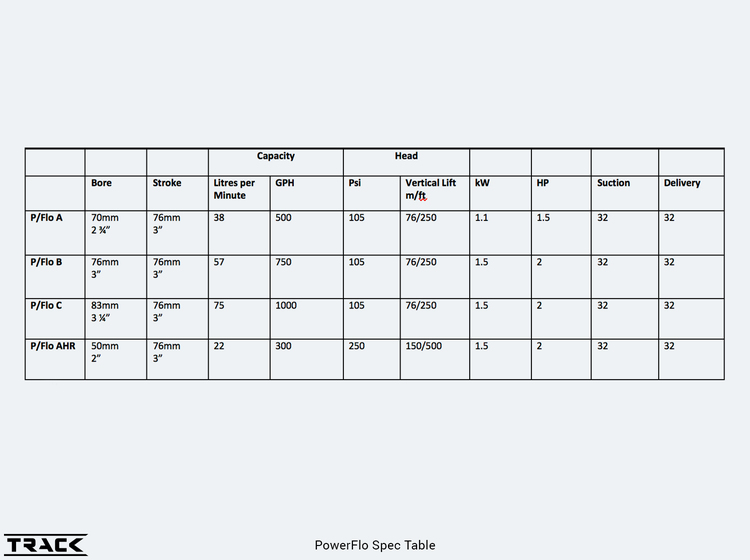

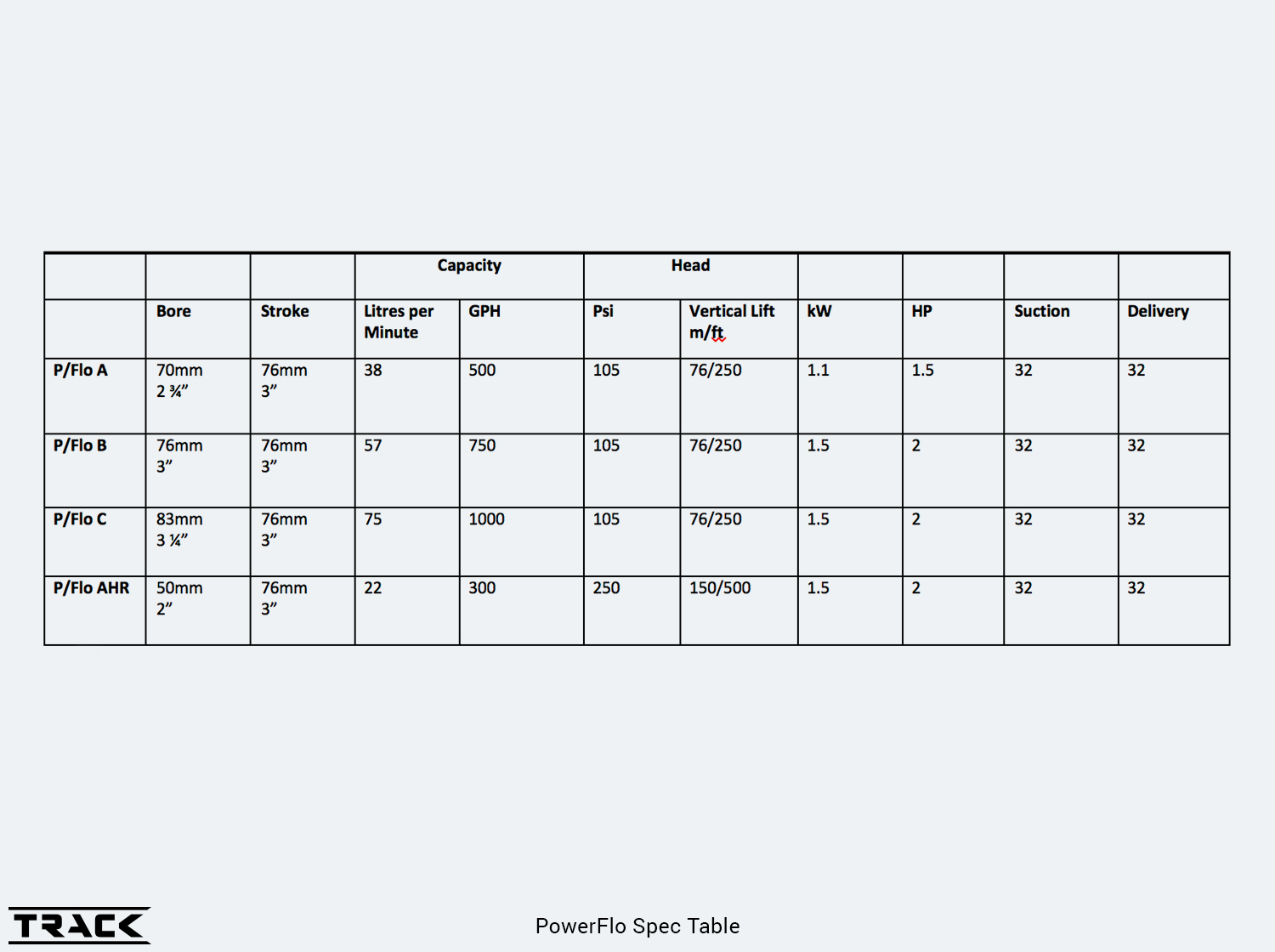

The PowerFlo A
The PowerFlo A is designed for efficient water pumping with a 70mm (2 ¾”) bore, making it ideal for medium-flow applications.
· Bore Size: 70mm (2 ¾”)
· Flow Rate: 2,500 litres per hour (550 gallons per hour)
· Maximum Vertical Head: 76m (250ft or 105psi)
· Motor Requirement: 1.5hp (1.1kW) 1,450 rpm electric motor
The PowerFlo B
With a 76mm (3”) bore, the PowerFlo B is perfect for higher flow requirements, providing reliable performance across a variety of applications.
· Bore Size: 76mm (3”)
· Flow Rate: 3,420 litres per hour (750 gallons per hour)
· Maximum vertical head: 76m (250ft or 105psi).
· Motor Requirement: 2hp (1.5kW) 1,450 rpm electric motor
The PowerFlo C
The PowerFlo C, with an 83mm (3 ¼”) bore, is designed for large-flow applications, offering impressive pumping capabilities.
· Bore Size: 83mm (3 ¼”) bore
· Flow rate: 4,550 litres per hour (1,000 gallons per hour)
· Maximum vertical head: 76m (250ft or 105psi)
· Motor requirement: 2hp (1.5kW) 1,450 rpm electric motor
Note: The PowerFlo C has a different Gland Plate from the A, B, and AHR models. When ordering, please use the code 40216.
The PowerFlo AHR
The PowerFlo AHR, with a 51mm (2”) bore, is designed for high-pressure applications, offering a maximum vertical head of 150m (500ft) for demanding environments.
· Bore Size: 51mm (2”)
· Flow rate: 1,320 litres per hour (300 gallons per hour)
· Maximum vertical head: 150m (500ft or 215psi).
· Motor requirement: 2hp (1.5kW) 1,450 rpm electric motor
Additional Information:
· Maximum Suction: 25ft (7.6m) across all models
· Oil Type: SAE 30 oil for the mechanical end of the pump
